Introduction

Auth0 is an OIDC-compatible identity provider. TIB connects to Auth0 using SocialProvider with the openid-connect provider type. Before configuring your IdP and TIB profile, read Dashboard SSO or Portal SSO to understand the ActionType, ReturnURL, and IdentityHandlerConfig fields required for your use case. This page covers the Auth0-specific configuration only.

​
Configure Auth0

  1. Log in to the Auth0 Dashboard and navigate to Applications > Applications.

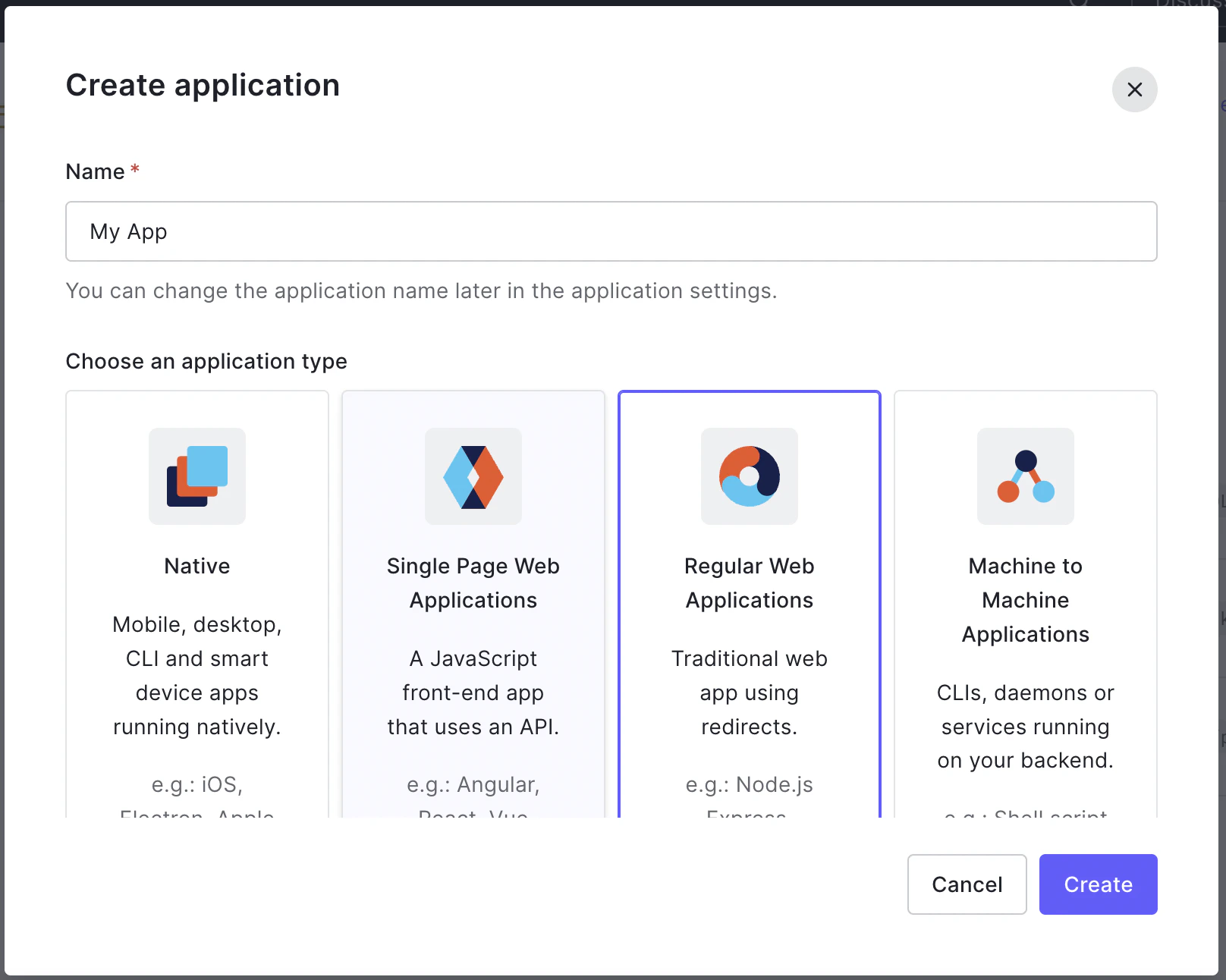

  2. Click Create Application, give it a name, select Regular Web Application, and click Create. Auth0 Application information

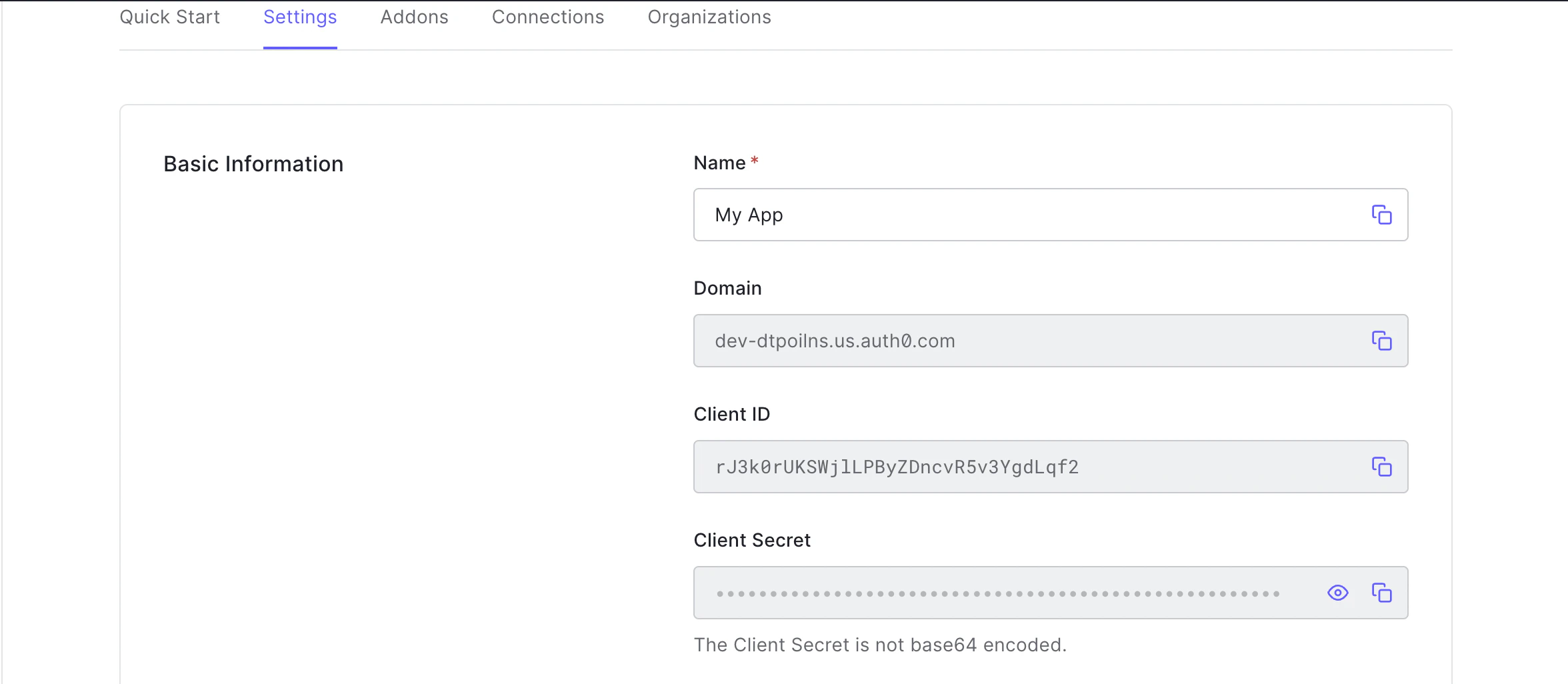

  3. From the application’s Settings tab, note the Domain, Client ID, and Client Secret. You will need all three for the TIB profile. Auth0 Application Basic information
  4. In the Allowed Callback URLs field, add the TIB callback URL:
    http://{tib-host}/auth/{profile-id}/openid-connect/callback
    Replace {tib-host} with the hostname of your TIB instance and {profile-id} with the ID you will assign to the TIB profile.
  5. Click Save Changes.
The Auth0 OIDC discovery URL for your tenant is:
https://{auth0-domain}/.well-known/openid-configuration
Where {auth0-domain} is the Domain value from your Auth0 application settings (for example, your-tenant.auth0.com).

​
TIB Profile

The Auth0-specific configuration goes in the ProviderConfig block of the TIB profile. Set ProviderName to SocialProvider and Type to redirect.
{
  "ProviderName": "SocialProvider",
  "Type": "redirect",
  "ProviderConfig": {
    "CallbackBaseURL": "http://{tib-host}",
    "FailureRedirect": "http://{failure-redirect-url}",
    "UseProviders": [
      {
        "Name": "openid-connect",
        "Key": "{auth0-client-id}",
        "Secret": "{auth0-client-secret}",
        "Scopes": ["openid", "email", "profile"],
        "DiscoverURL": "https://{auth0-domain}/.well-known/openid-configuration"
      }
    ]
  }
}
The Auth0-specific ProviderConfig fields are:
FieldDescription
CallbackBaseURLThe base URL of your TIB instance. TIB appends the callback path automatically.
FailureRedirectURL to redirect the user to on authentication failure.
UseProviders.NameMust be openid-connect. This value routes TIB to the OpenID Connect provider implementation.
UseProviders.KeyThe Auth0 Client ID.
UseProviders.SecretThe Auth0 Client Secret.
UseProviders.ScopesOAuth scopes to request. openid and email are required.
UseProviders.DiscoverURLThe Auth0 OIDC discovery URL for your tenant.

​
JSON Web Encryption (JWE)

If Auth0 is configured to encrypt ID tokens, TIB can decrypt them using JWE. Add a JWE block to ProviderConfig to enable this:
{
  "ProviderConfig": {
    "UseProviders": [...],
    "JWE": {
      "Enabled": true,
      "PrivateKeyLocation": "{certificate-id-or-path}"
    }
  }
}
For embedded TIB in Tyk Dashboard, set PrivateKeyLocation to the certificate ID from the Tyk Dashboard certificate manager. For standalone TIB, set it to the file path of a PEM file containing the private key. The key must correspond to the public key registered with Auth0 for token encryption. Requires Tyk Identity Broker v1.6.1+ and Tyk Dashboard v5.7.0+.

​
Worked Examples

These examples use embedded TIB, so the CallbackBaseURL is the same as the Dashboard or Portal respectively; TIB handles requests on the same host and port.
In this example, Tyk Dashboard is running at http://dashboard.example.com on port 3000; replace the example values with your own.Tyk Dashboard configuration
{
  "sso_enable_user_lookup": true,
  "sso_permission_defaults": {
    "apis": "write",
    "keys": "write",
    "policies": "write"
  },
  "sso_default_group_id": "{tyk-user-group-id}"
}
With this configuration, registered users (with a Tyk Dashboard user account) get their own permissions; unregistered users fall back to the group specified in sso_default_group_id. See Dashboard SSO for full details.TIB profileThe TIB profile is created via the Tyk Identity Broker API or the Tyk Dashboard UI.
{
  "ID": "auth0-dashboard-oidc",
  "Name": "Auth0 Dashboard SSO",
  "OrgID": "{tyk-org-id}",
  "ActionType": "GenerateOrLoginUserProfile",
  "Type": "redirect",
  "ProviderName": "SocialProvider",
  "ReturnURL": "http://dashboard.example.com:3000/tap",
  "IdentityHandlerConfig": {
    "DashboardCredential": "{tib-service-user-api-key}"
  },
  "ProviderConfig": {
    "CallbackBaseURL": "http://dashboard.example.com:3000",
    "FailureRedirect": "http://dashboard.example.com:3000/?fail=true",
    "UseProviders": [
      {
        "Name": "openid-connect",
        "Key": "{auth0-client-id}",
        "Secret": "{auth0-client-secret}",
        "Scopes": ["openid", "email", "profile"],
        "DiscoverURL": "https://{auth0-domain}/.well-known/openid-configuration"
      }
    ]
  }
}
  • set Key to the Auth0 Client ID
  • set Secret to the Auth0 Client Secret
  • set DashboardCredential to the TIB service account’s Dashboard credentials
Auth0 callback URLEnsure the following URL is listed in Allowed Callback URLs in your Auth0 application settings. The ID in the registered URL must exactly match the ID in your TIB profile; a mismatch will result in a 400 Bad Request error:
http://dashboard.example.com:3000/auth/auth0-dashboard-oidc/openid-connect/callback
Login URLThis URL initiates the SSO login flow:
http://dashboard.example.com:3000/auth/auth0-dashboard-oidc/openid-connect
In production, present this as a “Log in with Auth0” button or link on a custom login page, rather than expecting users to navigate to it directly.See Dashboard SSO for details on session behavior, permissions, and user group mapping.
