SSO with Microsoft Entra ID

Learn how to configure Single Sign-On (SSO) for Tyk Dashboard or Tyk Developer Portal using Microsoft Entra ID, via OpenID Connect or SAML.

Introduction

Microsoft Entra ID (formerly Azure AD) supports both OpenID Connect (OIDC) and SAML 2.0.

• For most new deployments, OIDC is recommended as it is simpler to configure and is Microsoft’s preferred modern authentication protocol.
• Use SAML if your organization requires it for policy or compatibility reasons.

Before configuring your IdP and TIB profile, read Dashboard SSO or Portal SSO to understand the ActionType, ReturnURL, and IdentityHandlerConfig fields required for your use case.

This page covers the Entra ID-specific configuration only.

SSO with OpenID Connect

Configure Entra ID

1. In the Azure Portal, navigate to Microsoft Entra ID and select App registrations.

2. Select New registration. Give the application a name and register it.

3. From the app’s Overview page, note the Application (client) ID and Directory (tenant) ID. You will need both for the TIB profile.

4. Navigate to Certificates and secrets and create a new Client secret. Copy the secret Value (not the Secret ID) immediately as it will not be shown again.

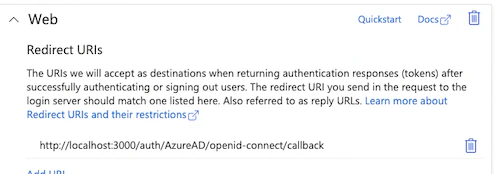

5. Navigate to Authentication and add a Redirect URI of type Web. Set it to:

   http://{tib-host}/auth/{profile-id}/openid-connect/callback


   Replace {tib-host} with the hostname of your TIB instance and {profile-id} with the ID you will assign to the TIB profile.



The Entra ID OIDC discovery URL for your tenant is:

https://login.microsoftonline.com/{tenant-id}/v2.0/.well-known/openid-configuration

TIB Profile

The Entra ID-specific configuration goes in the ProviderConfig block of the TIB profile. Set ProviderName to SocialProvider and Type to redirect.

{
  "ProviderName": "SocialProvider",
  "Type": "redirect",
  "ProviderConfig": {
    "CallbackBaseURL": "http://{tib-host}",
    "FailureRedirect": "http://{failure-redirect-url}",
    "UseProviders": [
      {
        "Name": "openid-connect",
        "Key": "{entra-client-id}",
        "Secret": "{entra-client-secret}",
        "Scopes": ["openid", "email", "profile"],
        "DiscoverURL": "https://login.microsoftonline.com/{tenant-id}/v2.0/.well-known/openid-configuration"
      }
    ]
  }
}

The Entra ID-specific ProviderConfig fields are:

Field	Description
CallbackBaseURL	The base URL of your TIB instance. TIB appends the callback path automatically.
FailureRedirect	URL to redirect the user to on authentication failure.
UseProviders.Name	Must be openid-connect. This value routes TIB to the OpenID Connect provider implementation.
UseProviders.Key	The Entra ID Application (client) ID.
UseProviders.Secret	The Entra ID client secret value.
UseProviders.Scopes	OAuth scopes to request. openid and email are required.
UseProviders.DiscoverURL	The Entra ID OIDC discovery URL for your tenant.

JSON Web Encryption (JWE)

If Entra ID is configured to encrypt ID tokens, TIB can decrypt them using JWE. Add a JWE block to ProviderConfig to enable this:

{
  "ProviderConfig": {
    "UseProviders": [...],
    "JWE": {
      "Enabled": true,
      "PrivateKeyLocation": "{certificate-id-or-path}"
    }
  }
}

For embedded TIB in Tyk Dashboard, set PrivateKeyLocation to the certificate ID from the Tyk Dashboard certificate manager. For standalone TIB, set it to the file path of a PEM file containing the private key. The key must correspond to the public key registered with Entra ID for token encryption.

Requires Tyk Identity Broker v1.6.1+ and Tyk Dashboard v5.7.0+.

Worked Examples (OIDC)

These examples use embedded TIB, so the CallbackBaseURL is the same as the Dashboard or Portal respectively; TIB handles requests on the same host and port.

Dashboard SSO

In this example, Tyk Dashboard is running at http://dashboard.example.com on port 3000; replace the example values with your own.

Tyk Dashboard configuration

{
  "sso_enable_user_lookup": true,
  "sso_permission_defaults": {
    "apis": "write",
    "keys": "write",
    "policies": "write"
  },
  "sso_default_group_id": "{tyk-user-group-id}"
}

With this configuration, registered users (with a Tyk Dashboard user account) get their own permissions; unregistered users fall back to the group specified in sso_default_group_id. See Dashboard SSO for full details.

TIB profile

The TIB profile is created via the Tyk Identity Broker API or the Tyk Dashboard UI.

{
  "ID": "entra-dashboard-oidc",
  "Name": "Entra ID Dashboard SSO (OIDC)",
  "OrgID": "{tyk-org-id}",
  "ActionType": "GenerateOrLoginUserProfile",
  "Type": "redirect",
  "ProviderName": "SocialProvider",
  "ReturnURL": "http://dashboard.example.com:3000/tap",
  "IdentityHandlerConfig": {
    "DashboardCredential": "{tib-service-user-api-key}"
  },
  "ProviderConfig": {
    "CallbackBaseURL": "http://dashboard.example.com:3000",
    "FailureRedirect": "http://dashboard.example.com:3000/?fail=true",
    "UseProviders": [
      {
        "Name": "openid-connect",
        "Key": "{entra-client-id}",
        "Secret": "{entra-client-secret}",
        "Scopes": ["openid", "email", "profile"],
        "DiscoverURL": "https://login.microsoftonline.com/{tenant-id}/v2.0/.well-known/openid-configuration"
      }
    ]
  }
}

• set Key to the Entra ID Application (client) ID
• set Secret to the Entra ID client secret Value
• set DashboardCredential to the TIB service account’s Dashboard credentials

Entra ID redirect URI

Ensure the following URL is listed in your Entra ID app registration under Authentication > Redirect URIs. The ID in the registered URL must exactly match the ID in your TIB profile; a mismatch will result in a 400 Bad Request error:

http://dashboard.example.com:3000/auth/entra-dashboard-oidc/openid-connect/callback

Login URL

This URL initiates the SSO login flow:

http://dashboard.example.com:3000/auth/entra-dashboard-oidc/openid-connect

In production, present this as a “Log in with Entra ID” button or link on a custom login page, rather than expecting users to navigate to it directly.

See Dashboard SSO for details on session behavior, permissions, and user group mapping.

Portal SSO

In this example, Tyk Developer Portal is running at http://portal.example.com on port 3001; replace the example values with your own.

Tyk Developer Portal configuration

Enable embedded TIB in the Portal configuration:

{
  "TIB": {
    "Enable": true
  }
}

TIB profile

The TIB profile is created via the Tyk Developer Portal UI under Settings > SSO Profiles.

{
  "ID": "entra-portal-oidc",
  "Name": "Entra ID Portal SSO (OIDC)",
  "OrgID": "{tyk-org-id}",
  "ActionType": "GenerateOrLoginDeveloperProfile",
  "Type": "redirect",
  "ProviderName": "SocialProvider",
  "ReturnURL": "http://portal.example.com:3001/sso",
  "IdentityHandlerConfig": {
    "DashboardCredential": "{portal-api-secret}"
  },
  "ProviderConfig": {
    "CallbackBaseURL": "http://portal.example.com:3001",
    "FailureRedirect": "http://portal.example.com:3001/?fail=true",
    "UseProviders": [
      {
        "Name": "openid-connect",
        "Key": "{entra-client-id}",
        "Secret": "{entra-client-secret}",
        "Scopes": ["openid", "email", "profile"],
        "DiscoverURL": "https://login.microsoftonline.com/{tenant-id}/v2.0/.well-known/openid-configuration"
      }
    ]
  }
}

• set ActionType and OrgID based on the audience:
  • Admin Portal (API owners): ActionType: "GenerateOrLoginUserProfile", OrgID: "0"
  • Live Portal (API consumers): ActionType: "GenerateOrLoginDeveloperProfile", OrgID is not required
• set Key to the Entra ID Application (client) ID
• set Secret to the Entra ID client secret Value
• set DashboardCredential to the PortalAPISecret used to authenticate with the Portal’s management API

Entra ID redirect URI

Ensure the following URL is listed in your Entra ID app registration under Authentication > Redirect URIs. The ID in the registered URL must exactly match the ID in your TIB profile; a mismatch will result in a 400 Bad Request error:

http://portal.example.com:3001/auth/entra-portal-oidc/openid-connect/callback

Login URL

This URL initiates the SSO login flow:

http://portal.example.com:3001/auth/entra-portal-oidc/openid-connect

In production, present this as a “Log in with Entra ID” button or link on the Portal login page.

For details on user group mapping and admin vs developer profiles, see Portal SSO.

SSO with SAML

Configure Entra ID

1. In the Azure Portal, navigate to Microsoft Entra ID and select Enterprise applications.
2. Select New application and then Create your own application. Give it a name and select Integrate any other application you don’t find in the gallery.
3. Navigate to Single sign-on and select SAML.
4. TIB exposes a SAML Service Provider (SP) metadata endpoint for each profile. For embedded TIB, this is on the same host as the Tyk Dashboard (or Developer Portal), for example:
   http://dashboard.example.com:3000/auth/{profile-id}/saml/metadata

   You can use this URL to configure Entra ID automatically, or manually set the Entity ID and Reply URL (ACS URL). The ACS URL is:
   http://dashboard.example.com:3000/auth/{profile-id}/saml/callback

5. From the SAML Certificates section, copy the App Federation Metadata URL. You will need this for the TIB profile IDPMetadataURL field.
6. Under Attributes and Claims, ensure the email claim is mapped. By default Entra ID maps email to http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress.

TIB Profile

The Entra ID-specific configuration goes in the ProviderConfig block of the TIB profile. Set ProviderName to SAMLProvider and Type to redirect.

{
  "ProviderName": "SAMLProvider",
  "Type": "redirect",
  "ProviderConfig": {
    "SAMLBaseURL": "http://{tib-host}",
    "IDPMetadataURL": "https://login.microsoftonline.com/{tenant-id}/federationmetadata/2007-06/federationmetadata.xml",
    "CertLocation": "/path/to/sp-cert-and-key.pem",
    "FailureRedirect": "http://{failure-redirect-url}",
    "SAMLEmailClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress",
    "SAMLForenameClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname",
    "SAMLSurnameClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname",
    "ForceAuthentication": false
  }
}

The Entra ID-specific ProviderConfig fields are:

Field	Description
SAMLBaseURL	The base URL of your TIB instance. Used to construct the SP metadata and ACS URLs.
IDPMetadataURL	The Entra ID federation metadata URL for your tenant.
CertLocation	Path to a PEM file containing the SP certificate and private key concatenated. When using Tyk Dashboard with embedded TIB, this can be a certificate ID from the Tyk Certificate Store.
SAMLEmailClaim	The SAML claim name for the user’s email address.
SAMLForenameClaim	The SAML claim name for the user’s first name.
SAMLSurnameClaim	The SAML claim name for the user’s last name.
ForceAuthentication	Set to true to force Entra ID to re-authenticate the user on every request, ignoring any existing session.

Worked Examples (SAML)

These examples use embedded TIB, so SAMLBaseURL is the same as the Dashboard or Portal respectively. TIB handles requests on the same host and port.

Dashboard SSO

In this example, Tyk Dashboard is running at http://dashboard.example.com on port 3000; replace the example values with your own.

Tyk Dashboard configuration

{
  "sso_enable_user_lookup": true,
  "sso_permission_defaults": {
    "apis": "write",
    "keys": "write",
    "policies": "write"
  },
  "sso_default_group_id": "{tyk-user-group-id}"
}

With this configuration, registered users (with a Tyk Dashboard user account) get their own permissions; unregistered users fall back to the group specified in sso_default_group_id. See Dashboard SSO for full details.

Certificate

Upload the Service Provider certificate pair that will be used to sign SAML requests to the Tyk Certificate Store (API Security > TLS/SSL Certificates), noting the assigned certificate ID to be used in the TIB profile.

TIB profile

The TIB profile is created via the Tyk Identity Broker API or the Tyk Dashboard UI.

{
  "ID": "entra-dashboard-saml",
  "Name": "Entra ID Dashboard SSO (SAML)",
  "OrgID": "{tyk-org-id}",
  "ActionType": "GenerateOrLoginUserProfile",
  "Type": "redirect",
  "ProviderName": "SAMLProvider",
  "ReturnURL": "http://dashboard.example.com:3000/tap",
  "IdentityHandlerConfig": {
    "DashboardCredential": "{tib-service-user-api-key}"
  },
  "ProviderConfig": {
    "SAMLBaseURL": "http://dashboard.example.com:3000",
    "IDPMetadataURL": "https://login.microsoftonline.com/{tenant-id}/federationmetadata/2007-06/federationmetadata.xml",
    "CertLocation": "{certificate-id-from-dashboard}",
    "FailureRedirect": "http://dashboard.example.com:3000/?fail=true",
    "SAMLEmailClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress",
    "SAMLForenameClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname",
    "SAMLSurnameClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname",
    "ForceAuthentication": false
  }
}

• set DashboardCredential to the TIB service account’s Dashboard credentials
• set CertLocation to the certificate ID for the SAML SP certificate

Login URL

This URL initiates the SSO login flow:

http://dashboard.example.com:3000/auth/entra-dashboard-saml/saml

In production, present this as a “Log in with Entra ID” button or link on a custom login page, rather than expecting users to navigate to it directly.

See Dashboard SSO for details on session behavior, permissions, and user group mapping.

Portal SSO

In this example, Tyk Developer Portal is running at http://portal.example.com on port 3001; replace the example values with your own.

Tyk Developer Portal configuration

Enable embedded TIB in the Portal configuration:

{
  "TIB": {
    "Enable": true
  }
}

Certificate

Unlike the Dashboard, the Portal’s embedded TIB loads certificates from the filesystem rather than from a certificate store. Set CertLocation to the file path of a PEM file containing the SP certificate and private key concatenated, accessible on the server running the Portal.

TIB profile

The TIB profile is created via the Tyk Developer Portal UI under Settings > SSO Profiles.

{
  "ID": "entra-portal-saml",
  "Name": "Entra ID Portal SSO (SAML)",
  "OrgID": "{tyk-org-id}",
  "ActionType": "GenerateOrLoginDeveloperProfile",
  "Type": "redirect",
  "ProviderName": "SAMLProvider",
  "ReturnURL": "http://portal.example.com:3001/sso",
  "IdentityHandlerConfig": {
    "DashboardCredential": "{portal-api-secret}"
  },
  "ProviderConfig": {
    "SAMLBaseURL": "http://portal.example.com:3001",
    "IDPMetadataURL": "https://login.microsoftonline.com/{tenant-id}/federationmetadata/2007-06/federationmetadata.xml",
    "CertLocation": "/path/to/sp-cert-and-key.pem",
    "FailureRedirect": "http://portal.example.com:3001/?fail=true",
    "SAMLEmailClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress",
    "SAMLForenameClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname",
    "SAMLSurnameClaim": "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname",
    "ForceAuthentication": false
  }
}

• set ActionType and OrgID based on the audience:
  • Admin Portal (API owners): ActionType: "GenerateOrLoginUserProfile", OrgID: "0"
  • Live Portal (API consumers): ActionType: "GenerateOrLoginDeveloperProfile", OrgID is not required
• set CertLocation to the file path of the SP certificate PEM file on the Portal server
• set DashboardCredential to the PortalAPISecret used to authenticate with the Portal’s management API

Login URL

This URL initiates the SSO login flow:

http://portal.example.com:3001/auth/entra-portal-saml/saml

In production, present this as a “Log in with Entra ID” button or link on the Portal login page.

For details on user group mapping and admin vs developer profiles, see Portal SSO.

ADFS (On-Premises)

Active Directory Federation Services (ADFS) is Microsoft’s on-premises federation service. It uses the same SAML 2.0 protocol as Entra ID. Follow the SSO with SAML instructions above, with the following differences:

Configure ADFS (replaces “Configure Entra ID”)

Instead of configuring an Enterprise Application in the Azure Portal, configure a Relying Party Trust in the ADFS management console. Provide the TIB SP metadata URL to configure the trust automatically:

http://{tib-host}/auth/{profile-id}/saml/metadata

TIB profile differences

• IDPMetadataURL - use the ADFS federation metadata endpoint instead:
  https://{adfs-host}/FederationMetadata/2007-06/FederationMetadata.xml

• SAMLEmailClaim, SAMLForenameClaim, SAMLSurnameClaim - ADFS claim URIs depend on your claim issuance policy and may differ from the Entra ID defaults. Check the claims configured in your ADFS Relying Party Trust and update these values accordingly.

All other profile fields, worked examples, and login URL patterns are identical to the SAML section above.
